Water Bottle Label Sample

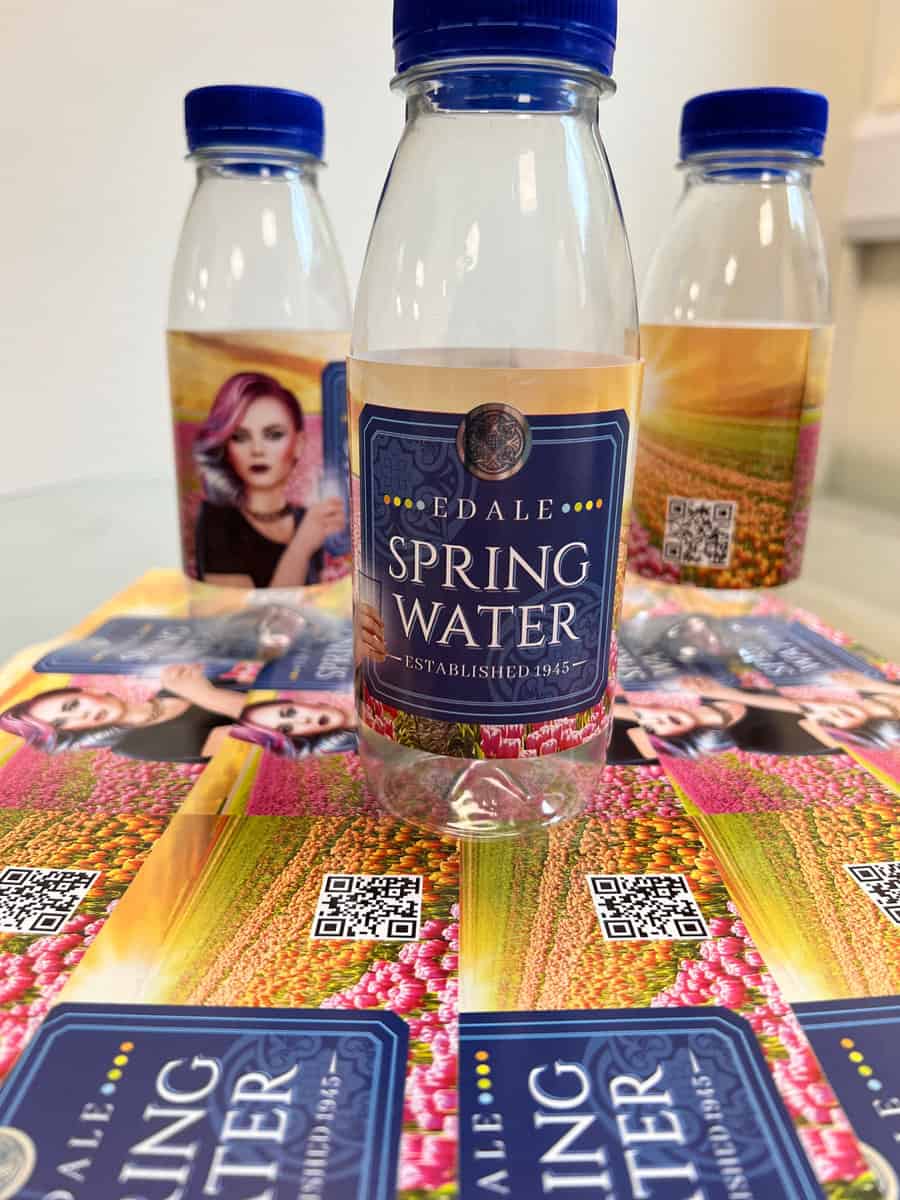

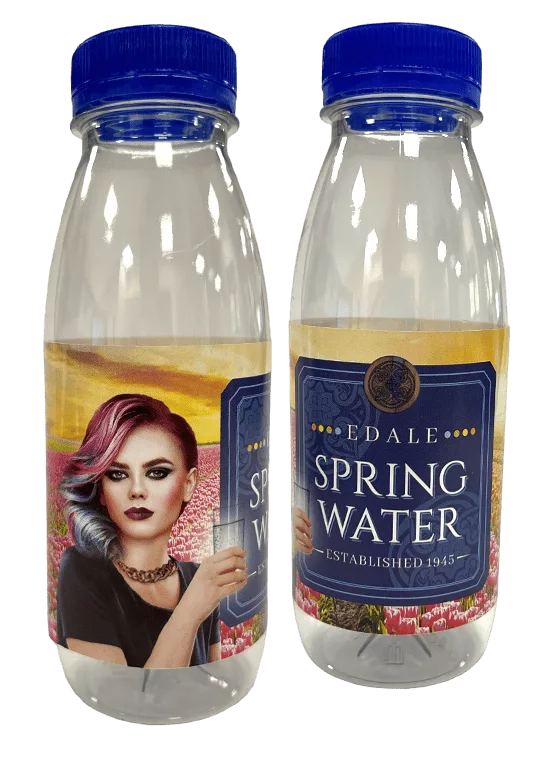

Our Edale Spring Water sample has been created on 35µm BOPP, this label was customised for a plastic water bottle ready for the shop shelves.
This sample was created to be one of a suite of three samples to showcase the incredible repeatability onto different substrates.

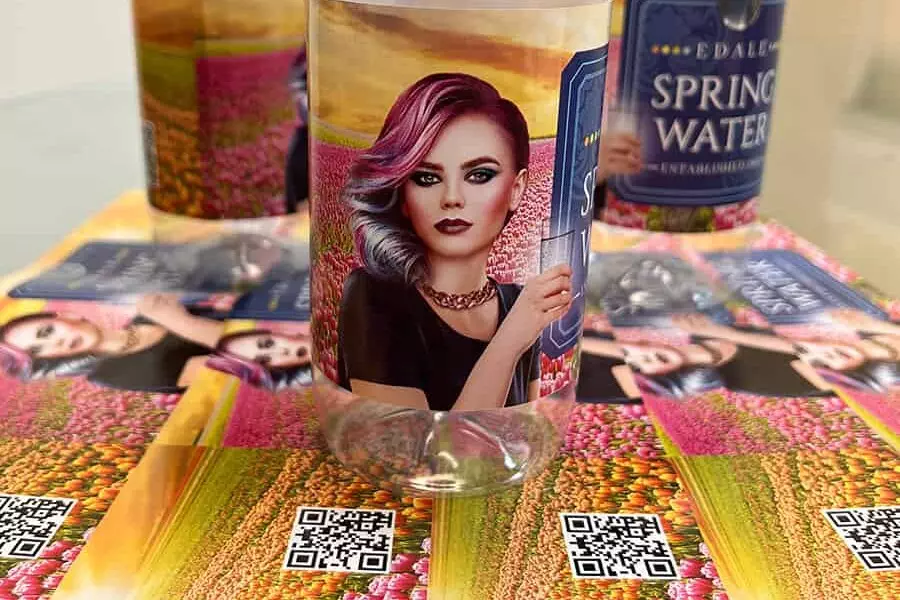

All of which are working towards the Fogra 39L print standards, with cold foil highlighting the brand roundel and the model’s eyes, lips and necklace giving the label an enhanced finish like no other. A spot varnish was applied to the skyline completing this sample.
*To fully view the table please swipe to the right.
| Plates | Tape | Substrates | |||
|---|---|---|---|---|---|
| Supplier | Printquest | Supplier | Tesa | Supplier | Premier reel paper |
| Thickness | 45 thou/1.14mm | Thickness | 20 thou/0.5mm | Product | 35 micron BOPP |
| Manufacturer/Type | Miraclon NXH. | Type | Softprint Medium |
| Embellishment | ||||
|---|---|---|---|---|
| Cut / Crease / Emboss | Supplier | Laserline | ||
| Foiling | Supplier | Kurz | Product | Alufin KPW XU Silver |
| Inks | ||||
|---|---|---|---|---|
| Print Unit | Supplier | UV | Colour | Range |
| 1 | Pulse | UV (Std) | Cold Foil Adhesive | Purefinish Tinted Cold Foil Adhesive |
| 2 | Pulse | UV (LED) | Cyan | Dualcure |
| 3 | Pulse | UV (LED) | Magenta | Dualcure |
| 4 | Pulse | UV (LED) | Yellow | Dualcure |
| 5 | Pulse | UV (LED) | Black | Dualcure |
| 6 | Pulse | UV (Std) | Gloss Varnish | FPC Gloss Varnish |
| Aniloxes | ||||
|---|---|---|---|---|
| Print Unit | Supplier | Lines Per Inch | Volume/Cm3m2 | Colour |
| 1 | ALT | 300 | 9 | Cold Foil Adhesive |
| 2 | ALT | 1200 | 3.5 | Cyan |
| 3 | ALT | 1200 | 3.5 | Magenta |
| 4 | ALT | 1200 | 3 | Yellow |
| 5 | ALT | 1200 | 3.5 | Black |
| 6 | ALT | 400 | 9.5 | Clear |
Developed on our Flexographic FL3 Label Press
*To fully view the table please swipe to the right.
| Plates | Tape | Substrates | |||
|---|---|---|---|---|---|
| Supplier | Printquest | Supplier | Tesa | Supplier | Premier reel paper |
| Thickness | 45 thou/1.14mm | Thickness | 20 thou/0.5mm | Product | 30 micron Clear BOPP |
| Manufacturer/Type | Miraclon NXH. | Type | Softprint Medium |
| Inks | ||||
|---|---|---|---|---|
| Print Unit | Supplier | UV | Colour | Range |
| 1 | Pulse | UV (LED) | Black | Dualcure |
| 2 | Pulse | UV (LED) | Magenta | Dualcure |
| 3 | Pulse | UV (LED) | Yellow | Dualcure |
| 4 | Pulse | UV (LED) | Cyan | Dualcure |
| 5 | Pulse | UV (STD) | Silver | FPC 877 Silver |
| 6 | Pulse | UV (LED) | White | Dualcure high opacity white |
| Aniloxes | ||||
|---|---|---|---|---|
| Print Unit | Supplier | Lines Per Inch | Volume/Cm3m2 | Colour |
| 1 | ALT | 1200 | 3.5 | Black |
| 2 | ALT | 1200 | 3.5 | Magenta |
| 3 | ALT | 1200 | 3 | Yellow |
| 4 | ALT | 1200 | 3.5 | Cyan |
| 5 | ALT | 600 | 7.5 | FPC 877 Silver |
| 6 | ALT | 400 | 9.5 | Dualcure high opacity white |
Developed on our Flexographic FL3 Label Press
