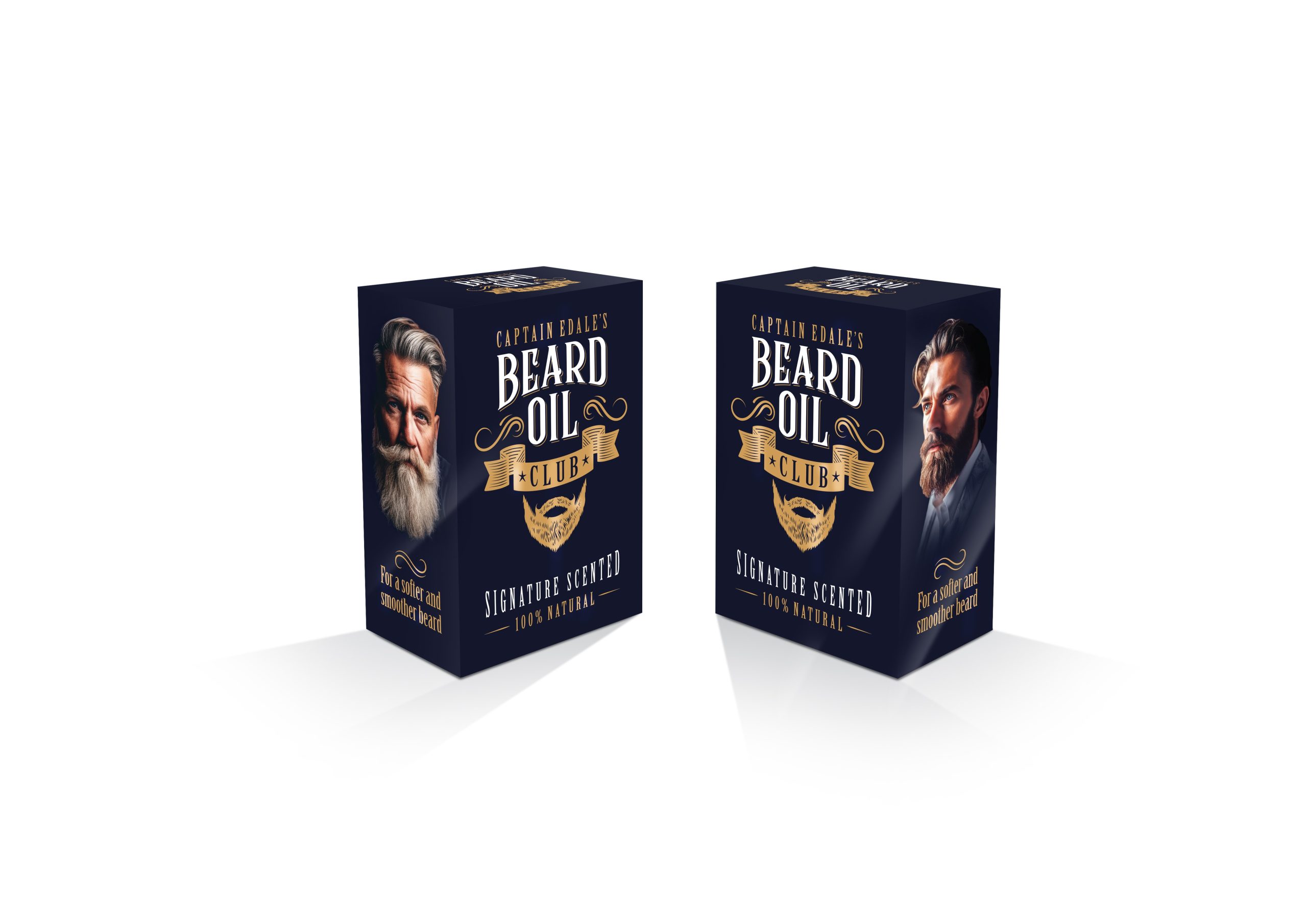

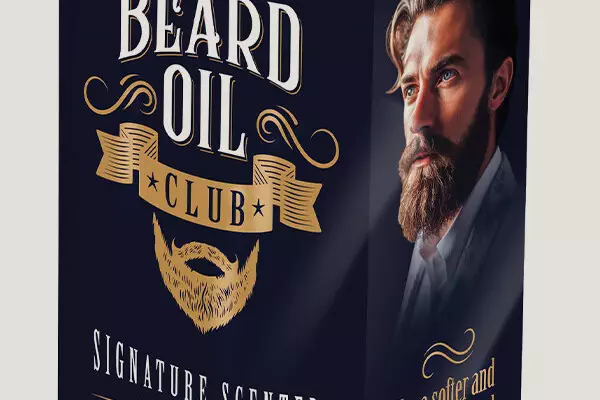

Captain Edale's Beard Oil Sample
The sample showcases just how embellishments can further enhance your Carton Production Line finished products with a cosmetic carton.
The Captain Edale's Beard Oil showcases an embossed Beard Oil brand, cold foil across the brand text.

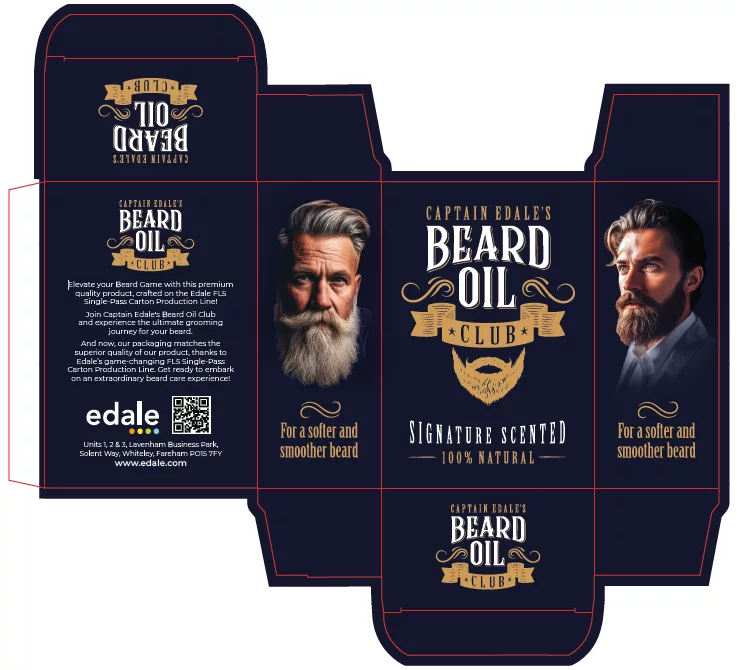

The text has been finished using silver ink which completes this perfectly crafted giveaway sample. Finally, this was then fed into the Flatbed die-cutter, cut creased and all waste stripped to give a finished sample ready for the folder, gluer and then ready to be distributed.
*To fully view the table please swipe to the right.
| Plates | Tape | Substrates | |||
|---|---|---|---|---|---|
| Supplier | Printquest | Supplier | Tesa | Supplier | Sappi (Premier Reel Paper) |
| Thickness | 45 thou/1.14mm | Thickness | 20 thou/0.5mm | Product | Algro Design Advanced |
| Manufacturer/Type | Miraclon NXH. | Type | Softprint Medium |
| Embellishments | ||||
|---|---|---|---|---|
| Cut/Crease/Emboss | Supplier | Laserline |
| Inks | |||||
|---|---|---|---|---|---|
| Print Unit | Supplier | UV | Colour | Range | |
| 1 | n/a | n/a | n/a | n/a | |
| 2 | n/a | n/a | n/a | n/a | |
| 3 | Pulse | UV Dualcure | Cyan | Puretone Dualcure | |
| 4 | Pulse | UV Dualcure | Magenta | Puretone Dualcure | |
| 5 | Pulse | UV Dualcure | Yellow | Puretone Dualcure | |
| 6 | Pulse | UV Dualcure | Black | Puretone Dualcure | |
| 7 | Pulse | UV Std | Silver | Purebright Ultra Bright | |
| 8 | Pulse | UV Std | Soft touch | Purefex Soft Touch Varnish |
| Aniloxes | ||||
|---|---|---|---|---|
| Print Unit | Supplier | Lines Per Inch | Volume/Cm3m2 | Colour |
| 1 | n/a | n/a | n/a | n/a |
| 2 | n/a | n/a | n/a | n/a |
| 3 | ALT | 1200 | 3.5 | Cyan |
| 4 | ALT | 1200 | 3.5 | Magenta |
| 5 | ALT | 1200 | 3 | Yellow |
| 6 | ALT | 1200 | 3.5 | Black |
| 7 | ALT | 500 | 8 | Silver |
| 8 | ALT | 400 | 10 | Clear |
Developed on our FL5 Single Pass Carton Production Line
Application examples
Request a Sample Pack
If you would like to receive a Sample Pack, please use the form to provide your details and we will get one sent out to you as soon as possible.
All our technology can be optimized for your application
Pyramid Spice Carton Sample
Edale Pyramid Spice Carton Sample, showcasing an embellishment with cold foil across the silver spoons to further enhance this vibrant pyramid sample.
Wine Bottle Label Sample
Our FL3 Label Press was able to achieve a superior print, finished on a self-adhesive label embellished with cold foil highlighting the brand roundel and the model giving an enhanced label finish like no other.
Water Bottle Label Sample
Our Edale spring water bottle label sample has been created on 35µm BOPP, this label was customised for a plastic water bottle ready for the shop shelves.
Wine Bottle Carton and Label Sample
The ‘Edale Press’ Wine Bottle Carton and Label Sample showcase the exceptional, repeatable print quality of our Single Pass Flexographic FL3 Label Press and FL5 Flexographic Carton Production Line.
Flusip DuPont Carton Sample
Flusip Sample, showcasing a embellishment with cold foil for the Flusip brand, gloss printing finished with the braille.
